ADSS Double Suspension Set - Enhanced Stability for Optical Cables

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	Zion communication OR OEM
Model Number :	Double Suspension Set for ADSS
Certification :	CE, ROHS, VDE, UL
Payment Terms :	T/T, L/C
Supply Ability :	500000pcs / Month
Delivery Time :	Normally 20 working days

Add to Cart

Double Suspension Set for ADSS
Double Suspension Set for ADSS is mainly used for large height difference, span more than 800 meters or unilateral overhang angle is 30 º -36 º line tower connection
Pictures and illustrations:

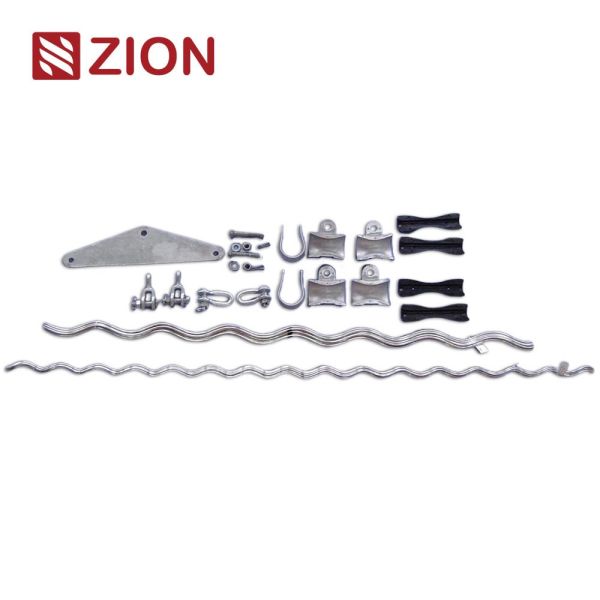

1.Structural Reinforcing Rods 2.Dead-end Component 3.AGS Clamp 4.PS-link 5.Yoke Plate 6.U-Clevis

Model Specification (Span ＞800m):
Name	Available Dia. of Cable(mm)	Length of Dead-end Component (mm)	Length of Reinforcing Rods(mm)	Reference Weight (kg)	Universal Scheme
					Link	AGS Clamp	Link Fittings
ZC-AXY 0940 300	8.6-9.4	1500	1060	1.2	L-1040	AGS-4	U-10
ZC-AXS 0940	8.6-9.4	1900	1600	1.7	L-1040	AGS-4	U-10
ZC-AXS 1010	9.5-10.1	1900	1600	1.8	L-1040	AGS-4	U-10
ZC-AXS 1070	10.2-10.7	1900	1600	1.9	L-1040	AGS-4	U-10
ZC-AXS 1140	10.8-11.4	1900	1600	1.9	L-1040	AGS-4	U-10
ZC-AXS 1220	11.5-12.2	2000	1700	2.2	L-1040	AGS-4	U-10
ZC-AXS 1290	12.3-12.9	2000	1800	2.3	L-1040	AGS-5	U-10
ZC-AXS 1370	13.0-13.7	2000	1800	3.4	L-1040	AGS-5	U-10
ZC-AXS 1460	13.8-14.6	2000	1800	3.6	L-1040	AGS-5	U-10
ZC-AXS 1550	14.7-15.5	2200	1900	4	L-1040	AGS-5	U-10
ZC-AXS 1650	15.6-16.5	2200	1900	4.2	L-1040	AGS-6	U-10
ZC-AXS 1750	16.6-17.5	2400	2000	4.4	L-1040	AGS-6	U-10
ZC-AXS 1870	17.6-18.7	2400	2000	4.7	L-1040	AGS-6	U-10

Note: 1. The maximum unilateral suspension angle of single suspension clamp is 20 ° - 30 °.
2.The above configuration is conventional configuration. If special configuration is required, consult the technical department of the company.
