GJXFDH / GJXDH Factory Direct Price Indoor FTTH Drop Cable Ribbon
Fibers 2.0*4.0 LSZH
GJXFDH FTTH Drop Fiber Optic Cables Ribbon Fibers 2.0*4.0LSZH
GJYXFDCH(GJYXDCH) FTTH Drop Fiber Optic Cables Ribbon Fibers
Introduction
The typical GJYXFDCH / GJYXDCH Self-supporting drop optical cable
includes central optical Ribbon fibre(s) with 2 parallel FRP/Steel
wires as the strength members placed on both sides,and an
additional strength member(steelwire),Finally a LSZH sheath is
extruded outside.
Features
Simple structure, light weight, high tensile strength and
metal-free
Novel groove design, easily strip and splice, simplified
installation and maintenance
Low smoke, zero halogen and flame retardant sheath,
environment-friendly, good safety
Product Series
- GJXFH: FRP Strength Member+2.0*3.0LSZH
- GJXH: Steel Wire Strength Member+2.0*3.0 LSZH
- GJXH-Small Diamter: Steel Wire Strength Member+1.6*2.0 LSZH
- GJX(F)DH: Ribbon Fibers+2.0*4.0LSZH
- GJYX(F)CH: Self-Supporting Wires+2.0*5.2LSZH
- GJYX(F)CH-Small: Self-Supporting Wires+1.7*3.8LSZH
- GJYXFDCH(GJYXDCH): Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH
- GYFJU: Aramid Yarn Strength Round Sheath LSZH
- GYGXY: Central Tube Glass Yarns armor Round Sheath HDPE
- FDC: Flat Drop Cable+Central Tube+3.0*6.0 LSZH
- ASU: Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE
- GYXY-8S: Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE
- GYFXBY: Flat Drop Cable+Central Tube+4.6*8.1 LSZH

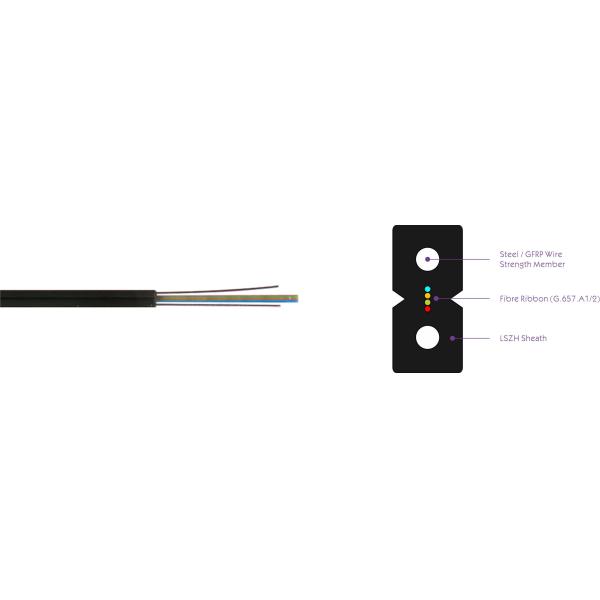

Cross Section
Technical Characteristics
GJXFDH-4 Diametermm: 2.0*6.2
GJXFDH-4 Weight(kg/km): 23.6
GJXFDH-4 Tensile strengthLong/short term(N): 40/80
GJXFDH-4 CrushLong/short term(N/100mm): 500/1000
GJXFDH-4 Bending RadiusStatic/Dynamic: 15/30
GJXDH-4 Diametermm: 2.0*6.2
GJXDH-4 Weight(kg/km): 25.6
GJXDH-4 Tensile strengthLong/short term(N): 100/200
GJXDH-4 CrushLong/short term(N/100mm): 1000/2200
GJXDH-4 Bending RadiusStatic/Dynamic: 15/30
Environmental Characteristics
Transport/storage temperature: -20℃~70℃
Delivery Length
Standard length:1000m;Other length availabe
