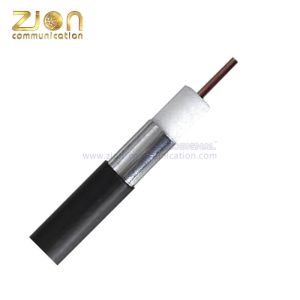

Trunk Cable QR 860 Series Cable Trunk and Distribution coaxial cable For Use in Longer CATV Run Lengths

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Trunk Cable QR860 75 Ohm CATV Coaxial Cable NO.7100418

Construction Parameters:
Inner Conductor	4AWG 5.16mm CCA
Dielectric	21.03mm Foamed PE
Outer Conductor	21.84mm Welding Aluminum Tube
Jacket	24.38mm PE Black
Jacket Thickness	1.27mm
Application	For Use in Longer CATV Run Lengths

Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be <1.33 Ω/km
Capacitance	50 ± 3 pF/m
Impedance	75 ± 2 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	87%
Sparker Test (VAC)	4

Mechanical and Environmental Properties:
Cable Bend Radius	10 times the cable diameter
Operating Temperature Range	-40 ℃ to +85℃
Cable Diamensions	24.38mm PE Black

Cross Section:


Attenuation(20℃):
Frequency (MHZ)		Max Attenuation (dB/100m)
5		0.30
55		1.05
211		2.10
250		2.30
300		2.49
350		2.72
400		2.89
450		3.12
500		3.28
550		3.48
600		3.61
750		4.07
865		4.36
1000		4.72




Order Informations:
Marking	HELLOSIGNAL Trunk Cable QR860 ×××M
Package	Inquired Length on Wooden Drum, Pallet …
Delivery Time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
