Flexible Screened Numbered Cores Data Transmission Cable With Protective Conductor

Ask Lasest Price
Brand Name :	Zion communication OR OEM
Model Number :	Flex Data Transmission Cable
Certification :	CE, RoHS, VDE, UL
Payment Terms :	T/T, L/C
Supply Ability :	1000KM / Month
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

Flexible Screened Numbered Cores Data Transmission Cable With Protective Conductor

Industrial Ethernet Cable

https://www.zion-communication.com/Industrial-Ethernet-Cable-pl569518.html

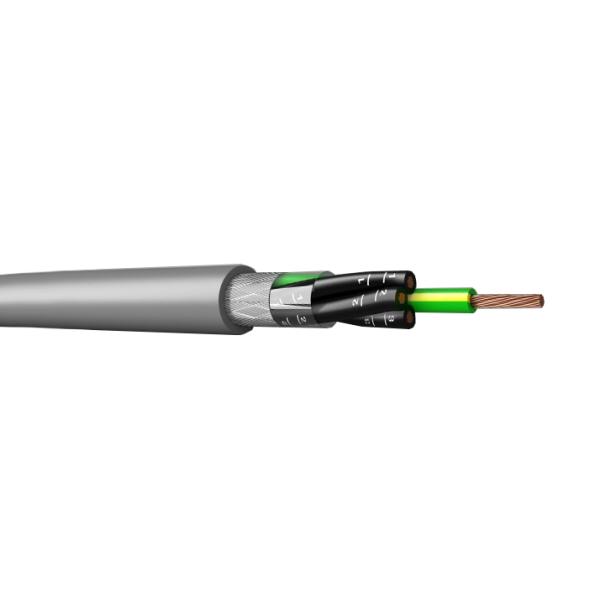

LiYY JZ Flexible screened numbered cores data Transmission cable with protective conductor


▉ Cable data
Stranded bare copper core according to DIN VDE 0295 and IEC 60228 cl.5 Core insulation of special PVC Black cores with repeated white numbering according to DIN VDE0293 Green yellow eath core in the outer layer,from 3 cores and more Cores stranded in layers with optimal lay lenght Foil separator Tinned copper braided screening,approx.85% coverage Special PVC outer sherth according to DIN VDE 0281 part 1 andHD 21.1,color grey,extensively oil resistant PVC self extingusishing and retardant,according to DIN VDE0428 part 268 2 1/EN 50265 2 1/IEC 60332 1
▉ Technical data
Special PVC flexible cables,accroding to DIN VDE 0245,0281 part 13 Temperature range flexing from 5℃ to+70℃ fixed from 30℃ to +80℃ Nominal voltage Uo/U 300/500 V Spark test 6000V Test voltage a.c core/core 3000V core/screen 1500V Instlation resistance min.250MΩ_km Minimum bending radius approx.10_cable diameter Radiation resistance up to 80_106cJ/kg(up to 80 Mrad)
▉ Application
Ideal for use as a control cable in tool making ang macjine industry as well ad signal cable in computers and electronics,The usual PVC inner sheath in this cable has been replaced by a stabilising foil separator,therefore considerably reducing the total diameter of the cable,its bending radius,weight etc,The high density of the braeding assures disturbance free transmission of all signals and impulses.

▉ Note
CE=The product is conformed with the EC Low-Voltage Dierctive 73/23/EEC OZ=version without green-yellow earth core Conforms to RoHS Other sizes and types available on request.

▉ Cross Section

▉ Product List
Item No.	Description&No.Conductors xcross sec mm²	Number of cores	Outer Diameter	Approx.Weight kg/km
7132400	0.5mm²	2	5.3	45.0
7132401	0.5mm²	3	5.6	55.0
7132402	0.5mm²	4	6.2	61.0
7132403	0.5mm²	5	6.7	74.0
7132404	0.5mm²	6	7.4	89.0
7132405	0.5mm²	7	7.9	98.0
7132406	0.5mm²	8	8.5	117.0
7132407	0.5mm²	10	9.5	135.0
7132408	0.5mm²	12	9.6	157.0
7132409	0.5mm²	14	10.0	190.0
7132410	0.5mm²	16	10.7	210.0
7132411	0.5mm²	18	11.2	217.0
7132412	0.5mm²	20	11.9	240.0
7132413	0.5mm²	21	12.5	250.0
7132414	0.5mm²	24	12.9	300.0
7132415	0.5mm²	25	13.5	314.0
7132416	0.5mm²	30	14.0	360.0
7132417	0.5mm²	32	14.6	425.0
7132418	0.5mm²	34	15.3	433.0
7132419	0.5mm²	36	15.9	446.0
7132420	0.5mm²	40	16.4	475.0
7132421	0.5mm²	50	18.1	573.0

▉ Product List
Item No.	Description&No.Conductors xcross sec mm²	Number of cores	Outer Diameter	Approx.Weight kg/km
7132430	0.75mm²	2	5.7	59.0
7132431	0.75mm²	3	6.2	66.0
7132432	0.75mm²	4	6.7	77.0
7132433	0.75mm²	5	7.2	93.0
7132434	0.75mm²	6	8.0	113.0
7132435	0.75mm²	7	8.6	130.0
7132436	0.75mm²	8	9.4	145.0
7132437	0.75mm²	10	10.2	180.0
7132438	0.75mm²	12	10.4	202.0
7132439	0.75mm²	14	11.1	225.0
7132440	0.75mm²	16	11.6	275.0
7132441	0.75mm²	18	12.4	292.0
7132442	0.75mm²	20	12.9	320.0
7132443	0.75mm²	21	13.8	378.0
7132444	0.75mm²	24	14.5	410.0
7132445	0.75mm²	25	14.9	425.0
7132446	0.75mm²	30	15.6	450.0
7132447	0.75mm²	32	16.1	484.0
7132448	0.75mm²	34	16.9	502.0
7132449	0.75mm²	36	17.1	535.0
7132450	0.75mm²	40	18.3	610.0
7132451	0.75mm²	50	20.0	777.0

7132460	1.00mm²	2	6.5	80.0
7132461	1.00mm²	3	7.1	98.0
7132462	1.00mm²	4	7.6	127.0
7132463	1.00mm²	5	8.5	144.0
7132464	1.00mm²	6	9.1	158.0
7132465	1.00mm²	7	9.9	197.0
7132466	1.00mm²	8	10.8	232.0
7132467	1.00mm²	10	11.2	260.0
7132468	1.00mm²	12	11.8	302.0
7132469	1.00mm²	14	12.3	346.0
7132470	1.00mm²	16	13.2	380.0
7132471	1.00mm²	18	13.5	412.0
7132473	1.00mm²	20	13.8	440.0
