    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer

    Ask Lasest Price
    Brand Name : Zion communication OR OEM
    Model Number : Optical System Equipment
    Certification : ISO, CE, RoHS, UL
    Payment Terms : T/T, L/C
    Supply Ability : 30,000 PCS / Month
    Delivery Time : Normally 10 workingdays
    • Product Details
    • Company Profile

    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer

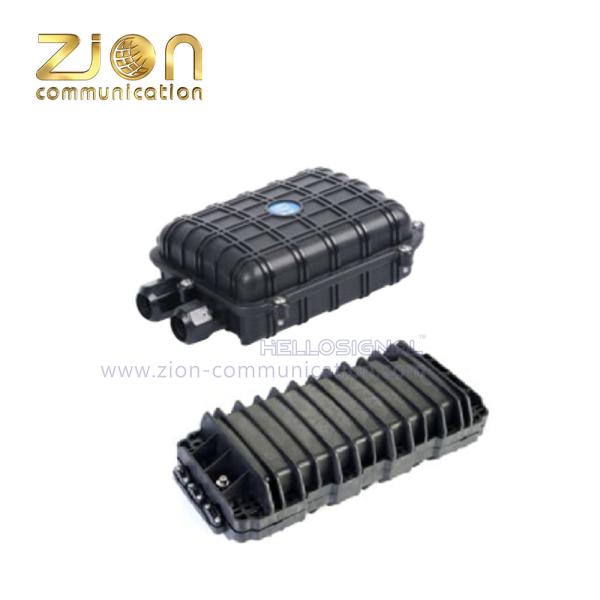

    Fiber Optic Splice Closure

    24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

    Inquire Now

    OPTIC SPLICE CLOSURE — ZCSC-H024/36/48/120/144

    ZCSC-H024-02
    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer

    Technical Specifcation
    Max Capacity 24F Inlets/Outlets 2/2
    Material PP/PC Accessible Cable Diameter Round:Φ7-12mm
    Max Splice Trays 1*24F Protection Rate IP68
    Dimension L*M*H(mm) 248*156*30 Cable Port Sealing Screw Mechanical

    ZCSC-S036-01
    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer

    Technical Specifcation
    Max Capacity 36F Inlets/Outlets 2/2
    Material PP Accessible Cable Diameter Oval:Φ10-17.5mm
    Max Splice Trays 3*12F Protection Rate IP68
    Dimension L*M*H(mm) 295*220*90 Cable Port Sealing Screw Mechanical
    ZCSC-S048-01

    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer
    Technical Specifcation
    Max Capacity 48F Inlets/Outlets 1/1
    Material PP/PC Accessible Cable Diameter Round:Φ14-19mm
    Max Splice Trays 2*24F Protection Rate IP68
    Dimension L*M*H(mm) 255*165*90 Cable Port Sealing Screw Mechanical

    ZCSC-H048-04
    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer

    Technical Specifcation
    Max Capacity 48F Inlets/Outlets 2/2
    Material PP/PC Type of PLC Round:Φ7-14mm
    Max Splice Trays 4*12F Protection Rate IP68
    Dimension L*M*H(mm) 406*170*75 Cable Port Sealing Screw Mechanical
    ZCSC-H120-01
    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer
    Technical Specifcation
    Max Capacity 120F Inlets/Outlets 3/3
    Material PP/ABS Type of PLC Round:Φ9.6,Φ12.3,Φ14.6mm
    Max Splice Trays 5*24F Protection Rate IP68
    Dimension L*M*H(mm) 369*186*146 Cable Port Sealing Screw Mechanical
    ZCSC-H072-01/H144-05
    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer
    Technical Specifcation
    Model No Max capacity Max splice
    trays    		 Dimension
    (mm)    		 Cable Port
    Sealing    		 Accessible
    Cable Diameter    		 Protection
    Rate
    ZCSC-H072-01 Bundle cable:72F 3*24F 490*200*120 Screw
    Mechanical    		 Round:Φ10-18mm IP68
    ZCSC-H144-05A Bundle cable:144F 6*24F 520*220*160 Material Inlets/Outlets
    ZCSC-H144-05B Bundle cable:144F 6*72F PP 2/2
    ZCSC-H144-07/H288-02

    Fibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China MaufacturerFibre Splice Enclosures , LC/SC Fiber Optic Box & Patch Panel from China Maufacturer

    ZCSC-H144-07 ZCSC-H288-02
    Technical Specifcation
    Model No Max capacity Max splice
    trays    		 Dimension
    (mm)    		 Cable Port
    Sealing    		 Accessible
    Cable Diameter    		 Protection
    Rate
    ZCSC-H144-07 144F 6*24F 515*217*120 Screw
    Mechanical    		 Round:Φ10-20mm IP68
    ZCSC-H288-02 288F 6*48F 515*217*150 Inlets/Outlets:3/3 Material:PP
